The IP Address

You've learned about the internet as a vast network connecting devices, and the client-server model that powers communication. Now, let's dive into how devices on this network actually find each other. This is where IP addresses come in - they're like the digital addresses that allow information to be routed to the correct destination.

What is an IP Address?

An IP address (Internet Protocol address) is a unique numerical identifier assigned to every device connected to a network that uses the Internet Protocol for communication. Think of it as a street address for your computer, phone, or any other internet-connected device. Just like a street address allows mail to be delivered to your house, an IP address allows data packets to be delivered to the correct device on the internet.

Without IP addresses, the internet would be chaos. There would be no way to know where to send information, and communication would be impossible.

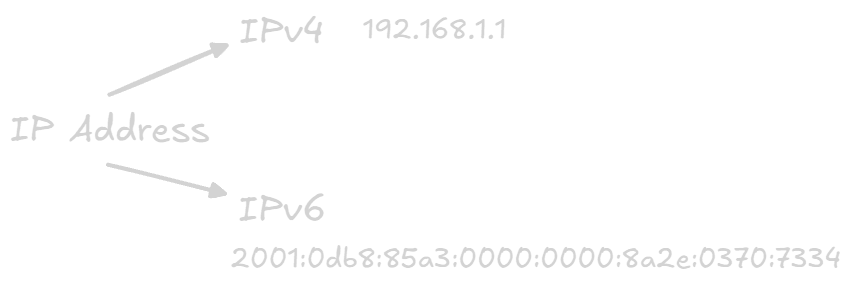

Types of IP Addresses: IPv4 and IPv6

There are two main versions of IP addresses in use today:

• IPv4 (Internet Protocol version 4): This is the older and still more widely used version. An IPv4 address is a 32-bit number, typically represented as four sets of numbers separated by dots, like this: 192.168.1.1. Each set of numbers can range from 0 to 255. While this system worked well for many years, the internet has grown so rapidly that we're running out of available IPv4 addresses. There are only about 4.3 billion possible IPv4 addresses, which isn't enough for all the devices in the world. Many servers and important internet services still rely heavily on IPv4.
• IPv6 (Internet Protocol version 6): This is the newer version, designed to solve the address shortage problem of IPv4. An IPv6 address is a 128-bit number, represented as eight groups of hexadecimal numbers separated by colons, like this: 2001:0db8:85a3:0000:0000:8a2e:0370:7334. This looks a lot more complicated, but the important thing is that it provides a vastly larger number of possible addresses - trillions upon trillions - enough for every device imaginable, and many more.

The transition from IPv4 to IPv6 is ongoing, and both types of addresses are currently in use.

Public vs. Private IP Addresses

Another important distinction is between public and private IP addresses:

• Public IP Address: This is the address that is visible to the outside world. It's the address that your internet service provider (ISP) assigns to your router or modem. All devices on your home network share this public IP address when communicating with the internet. Think of it as the street address of your house.
• Private IP Address: These addresses are used within a private network (like your home or office network). They are not directly accessible from the internet. Your router assigns private IP addresses to each device on your local network (your computer, phone, smart TV, etc.). Think of these as the room numbers within your house. Common private IP address ranges include 192.168.x.x, 10.x.x.x, and 172.16.x.x to 172.31.x.x.

The use of private IP addresses, along with a technique called Network Address Translation (NAT), allows multiple devices on a local network to share a single public IP address. This helps conserve IPv4 addresses and provides a layer of security.

How IP Addresses Work in Communication

When you send a request to a website (e.g., by typing a URL into your browser), your computer doesn't directly know where that website is located. Here's a simplified overview of what happens:

1. Your computer sends the request to your router. Your computer uses its own private IP address and the router's private IP address for this local communication.
2. Your router uses NAT to forward the request to the internet. It replaces your computer's private IP address with your network's public IP address.
3. The request travels across the internet, routed to the destination server's public IP address. This routing is handled by the Internet Protocol (IP), which uses IP addresses to determine the path data packets should take.
4. The server receives the request and sends a response back to your router's public IP address.
5. Your router uses NAT again to forward the response to your computer's private IP address.
6. Your computer receives the response and displays the web page.

This entire process happens in a fraction of a second, thanks to the efficiency of IP addressing and routing.
